Aluminum Nitride Ceramic Substrates: Enabling High-Power Electronics Through Superior Thermal Management ceramic ramekins
1. Product Science and Structural Quality
1.1 Crystal Framework and Chemical Security

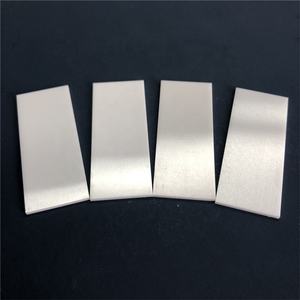

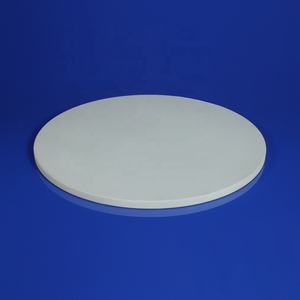

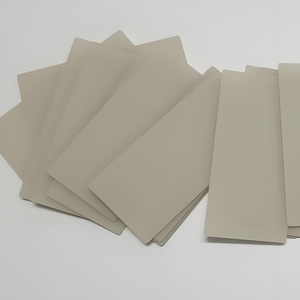

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of light weight aluminum and nitrogen atoms bonded via solid covalent communications.
This durable atomic plan endows AlN with phenomenal thermal security, preserving architectural stability as much as 2200 ° C in inert ambiences and withstanding decay under severe thermal biking.
Unlike alumina (Al ₂ O FOUR), AlN is chemically inert to molten steels and numerous responsive gases, making it appropriate for harsh environments such as semiconductor handling chambers and high-temperature heating systems.
Its high resistance to oxidation– creating only a thin protective Al ₂ O six layer at surface area upon exposure to air– guarantees long-lasting reliability without significant destruction of mass properties.
Moreover, AlN exhibits superb electric insulation with a resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Digital Attributes
One of the most defining function of aluminum nitride is its exceptional thermal conductivity, commonly varying from 140 to 180 W/(m · K )for commercial-grade substrates– over five times higher than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and light weight aluminum, combined with solid bonding and very little point problems, which permit efficient phonon transportation via the latticework.
Nonetheless, oxygen impurities are particularly damaging; even trace amounts (over 100 ppm) alternative to nitrogen sites, creating light weight aluminum vacancies and scattering phonons, thereby drastically reducing thermal conductivity.
High-purity AlN powders manufactured through carbothermal decrease or straight nitridation are essential to accomplish optimal warm dissipation.
Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric buildings make it important in sensors and acoustic wave tools, while its broad bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency electronic systems.
2. Construction Procedures and Production Challenges

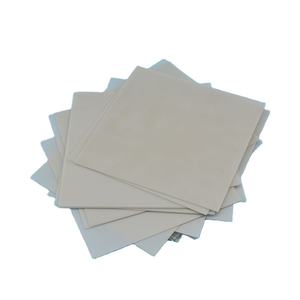

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Strategies
Producing high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, generally accomplished through reactions such as Al ₂ O FOUR + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or direct nitridation of light weight aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder has to be thoroughly crushed and doped with sintering aids like Y ₂ O THREE, CaO, or rare earth oxides to advertise densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These ingredients create transient fluid stages that enhance grain boundary diffusion, enabling complete densification (> 99% theoretical thickness) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can additionally reduce oxygen material by eliminating intergranular oxides, therefore recovering peak thermal conductivity.
Achieving uniform microstructure with regulated grain size is vital to stabilize mechanical strength, thermal efficiency, and manufacturability.
2.2 Substratum Forming and Metallization
As soon as sintered, AlN ceramics are precision-ground and splashed to satisfy limited dimensional tolerances required for electronic packaging, frequently down to micrometer-level monotony.
Through-hole boring, laser cutting, and surface patterning allow integration right into multilayer packages and hybrid circuits.
A vital action in substratum manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surface areas at raised temperature levels in a controlled ambience, forming a strong interface appropriate for high-current applications.
Alternative methods like active metal brazing (AMB) use titanium-containing solders to enhance attachment and thermal exhaustion resistance, particularly under repeated power biking.
Correct interfacial design guarantees low thermal resistance and high mechanical reliability in running gadgets.
3. Performance Advantages in Electronic Systems
3.1 Thermal Monitoring in Power Electronic Devices
AlN substrates excel in handling warm created by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical cars, renewable energy inverters, and telecoms facilities.
Effective heat extraction prevents local hotspots, reduces thermal stress and anxiety, and expands device life time by reducing electromigration and delamination threats.
Contrasted to traditional Al two O ₃ substratums, AlN makes it possible for smaller sized bundle dimensions and higher power densities as a result of its premium thermal conductivity, allowing designers to press performance limits without compromising dependability.
In LED lighting and laser diodes, where junction temperature directly affects performance and shade stability, AlN substratums substantially boost luminous result and operational life-span.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) also very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical anxiety during thermal biking.
3.2 Electric and Mechanical Dependability
Past thermal efficiency, AlN uses low dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) throughout a broad regularity range, making it excellent for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature stops wetness ingress, eliminating rust threats in humid atmospheres– a vital benefit over natural substratums.
Mechanically, AlN has high flexural toughness (300– 400 MPa) and firmness (HV ≈ 1200), guaranteeing toughness during handling, setting up, and field procedure.
These characteristics jointly contribute to improved system reliability, reduced failing prices, and lower overall expense of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Systems
AlN ceramic substrates are now basic in sophisticated power modules for commercial electric motor drives, wind and solar inverters, and onboard chargers in electric and hybrid lorries.
In aerospace and protection, they support radar systems, electronic war devices, and satellite communications, where efficiency under severe conditions is non-negotiable.
Medical imaging tools, consisting of X-ray generators and MRI systems, likewise gain from AlN’s radiation resistance and signal honesty.
As electrification patterns speed up throughout transport and power sectors, need for AlN substratums continues to expand, driven by the demand for small, effective, and reliable power electronics.
4.2 Arising Combination and Lasting Growth
Future innovations concentrate on integrating AlN right into three-dimensional product packaging architectures, embedded passive parts, and heterogeneous integration systems combining Si, SiC, and GaN gadgets.
Research study into nanostructured AlN movies and single-crystal substrates aims to additional boost thermal conductivity toward theoretical limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Efforts to decrease manufacturing costs via scalable powder synthesis, additive manufacturing of complicated ceramic structures, and recycling of scrap AlN are gaining momentum to improve sustainability.
Furthermore, modeling tools making use of finite aspect evaluation (FEA) and artificial intelligence are being utilized to optimize substrate design for particular thermal and electric tons.
To conclude, light weight aluminum nitride ceramic substratums represent a keystone innovation in contemporary electronic devices, distinctly connecting the gap in between electric insulation and exceptional thermal conduction.
Their duty in allowing high-efficiency, high-reliability power systems highlights their critical relevance in the continuous advancement of electronic and power innovations.
